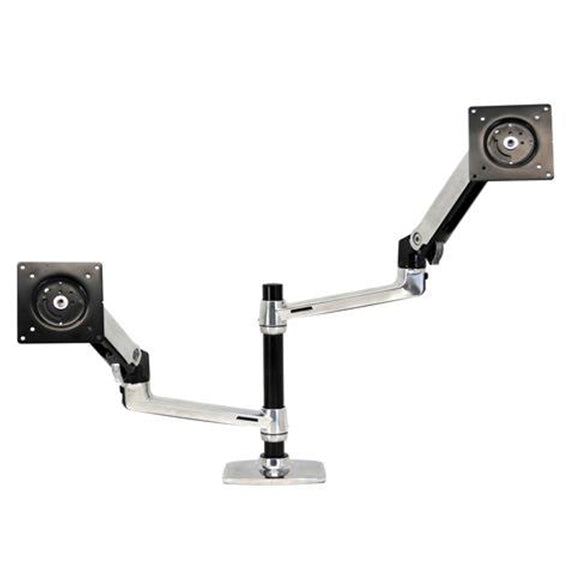

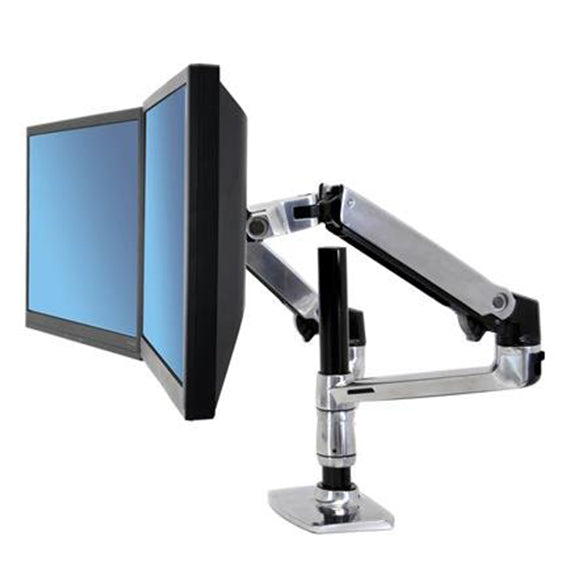

LX Dual Stacking Monitor Arm

Extra flexibility
Each arm lifts, extends and rotates for the best view

More motion

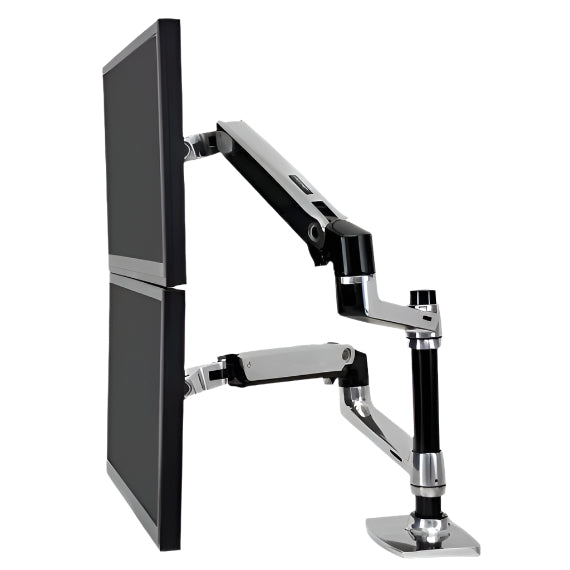

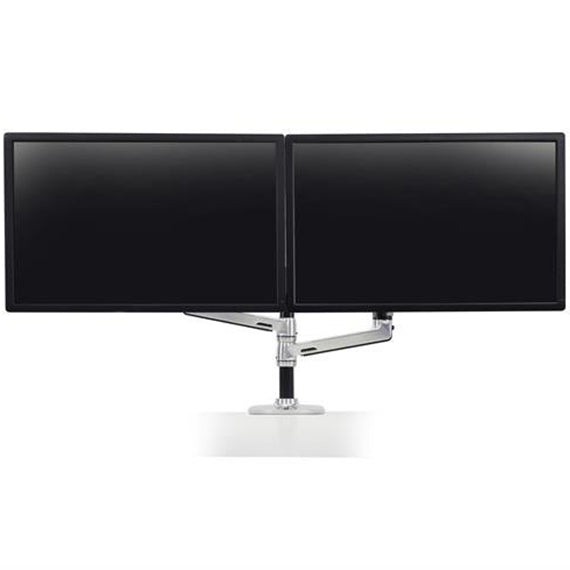

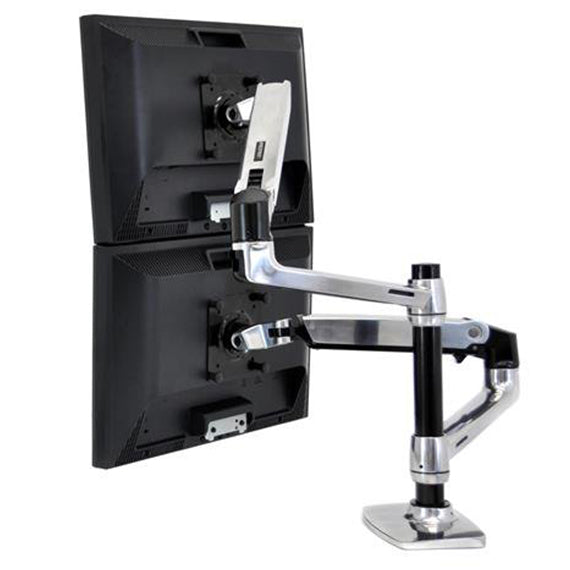

Place screens one over the other or on either side

Dual purpose
Holds two monitors up to 24" or a monitor and laptop

Sleek build
Streamlined look enhances your work area

Easy storage
Folds to fit under storage shelves or cabinets

Quality design
Built for thousands of movements by passing 10,000-cycle test

Improved LX Arm Features & Benefits
Aluminum construction offers greater durability and enhanced aesthetics

Snap-fit cap secures interface of arms to extensions for greater stability

New clamp and grommet mount base ensures greater stability of display and arm

To facilitate stacking of monitors, maximum outside height of display can be no more than 14" (35 cm).
Most monitors with screens of 24" or less fit within this specification.
Larger screen sizes are allowable when positioning displays side by side

Weight Capacity: individual LCD weight = 7 to 20 lbs (3.2 to 9.1 kg); notebook weight range = 2.5–12 lbs (1.1–5.4 kg); maximum combined weight of displays = 40 lbs (18.1 kg)

Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

Desk clamp attaches to edge up to 2.6" (66 mm) thick; grommet mount attaches through hole 5/16" to 2" (8–50 mm) wide and up to 3" (76 mm) thick

This product is certified & in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)

Shipping Dimensions: 19.25" x 15.25" x 9" (487 x 387 x 229 mm)

Shipping Weight: 15.75 lbs (7.18 kg)
Warranty: 10 years
